12.6V 4A lithium battery charger
| PCB NO. | MDA101A | ||||||
| INPUT | 100-240V AC 50/60Hz | ||||||
| OUTPUT | 29.4V/25.2V 2A | ||||||
| 16.8V 3.3A | |||||||
| 12.6V 4A | |||||||
| COOLING MODE | Fully closed/ Fanless | ||||||
| PROTECTION | Over current protection | ||||||
| Over voltage protection | |||||||
| Over temperature protection | |||||||
| Short-circuit protection | |||||||
| Reverse polarity protection | |||||||
| Timing protection | |||||||
| Switching off protection | |||||||
| Precharge-CC-CV protection | |||||||
| Recharge protection | |||||||
| CERTIFICATES | CB,CE,PSE,KC,KCC,RCM,C-Tick | ||||||
| SAFETY STANDARD | EN60335,EN55014,EN61000,UL1310,FCC part 15B | ||||||
| SIZE | 140*62*35MM | ||||||

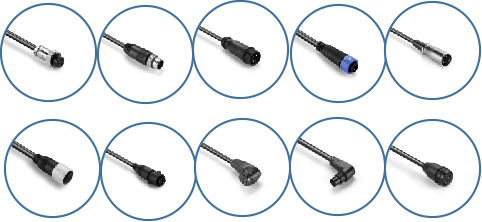

| Optional Connectors |  | ||||||
