PCB NO. | MDA307 |
INPUT | 100-240V AC 50/60Hz |
OUTPUT | 42V4A/54.6V3A |
Efficiency | ≥92% |
POWER FACTOR | ≥0.9 |
COOLING MODE | Fully closed/ Fanless |
| Over current protection |
Over voltage protection | |
Over temperature protection | |
Short-circuit protection | |
Reverse polarity protection | |
Timing protection | |
Switching off protection | |
Precharge-CC-CV protection | |
Recharge protection | |
CERTIFICATES | CB,CE,FCC,UKCA |
SAFETY STANDARD | EN60335, EN55014, EN61000, FCC Part 15B |
COMMUNICATION | CAN,UART,485 |
SIZE | 158 x 81 x 34 mm |

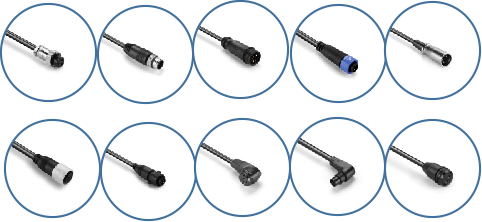

Optional Connectors |
|
