MDA310 54.6V 4.5A/58.8V 4A-Shenzhen Modiary Co., Ltd.

Charger - 48V

MDA310 54.6V 4.5A/58.8V 4A

Fast charger, lithium ion battery charger, stable function, a wide range of electric bicycles, power tools and other fields.

PCB NO	MDA310
INPUT	100-240V AC 50/60Hz
OUTPUT	42V 5A/6A 54.6V 4.5A 58.8V 4A
COOLING MODE	Fully colsed/Fanless
PROTECTION	Over current protection
	Over voltage protection
	Over temperature protection
	Short-circuit protection
	Reverse polarity protection
	Timing protection
	Switching off protection
	Precharge-CC-CV protection
	Recharge protection
Working Efficiency	≥93%
Power Factor	≥0.95
CERTIFICATES	CB,CE,UL,FCC,UKCA
SAFETY STANDARD	EN55014-1-1,55014-2;EN61000-3-2,61000-3-3
SAFETY STANDARD	EN55014-1-1,55014-2;EN61000-3-2,61000-3-3
SIZE	1899139.5MM
COMMUNICATION	CAN,UART,485

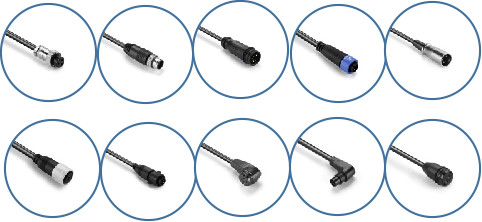

Optional Connectors
