48V2A li-ion battery charger
| PCB NO | MDA204B | |||
| INPUT | 100-240V AC 50/60Hz | |||
| OUTPUT | 50.4V 2A | |||
| 54.6V 2A | ||||
| 58.8V 2A | ||||
| COOLING MODE | Fully closed/Fanless | |||
| PROTECTION | Over current protection | |||
| Over voltage protection | ||||
| Over temperature protection | ||||
| Short-circuit protection | ||||
| Reverse polarity protection | ||||
| Timing protection | ||||
| Switching off protection | ||||
| Precharge-CC-CV mode | ||||
| Recharge protection | ||||
| CERTIFICATES | UL,CE,CB,RCM,SAA,FCC,CEC | |||
| SAFETY STANDARD | EN61558,EN55014,UL1012,EN61000,FCC part 15B | |||
| SIZE | 168*86*42MM | |||

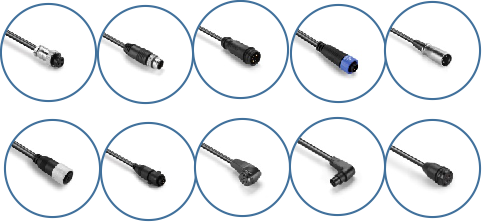

| Optional Connectors | ![1582181905799923[1].png](http://www.mdacharger.com/uploadfile/image/20200806/1596680043484109.png "1596680043484109.png") | |||
